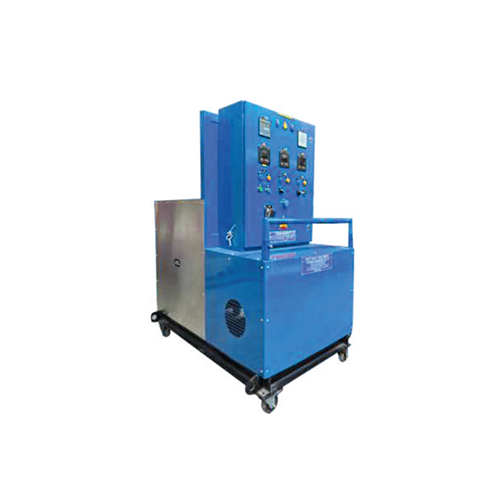

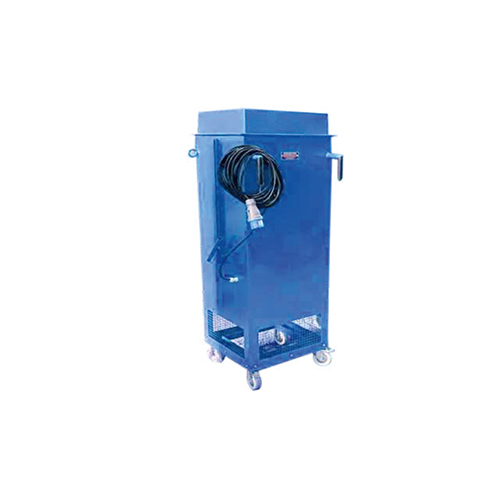

Pest Heat Treatment System

Get a Price/Quote

MOQ : 1 Unit

Pest Heat Treatment System Specification

Voltage
230V / 415V / 690V AC Volt (v)

Frequency
50/60 Hz Hertz (HZ)

Temperature
Up to 450 Celsius (oC)

Usage
Industrial

Color
Blue paint Coated

Power
2 kW to 500 kW (Kilo Watt (w)

Warranty
Yes

Pest Heat Treatment System Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
15 Units Per Month

Delivery Time
2-10 Days

Main Domestic Market
All India

About Pest Heat Treatment System

The IntegroWrap^TM Series is designed for industries that need clean, consistent, and energy-efficient hot air-whether it's for process heating or room/environmental heating. These rugged systems are built to deliver reliable thermal performance across a variety of industrial settings, ensuring your operations run efficiently, comfortably, and safely. Whether you're maintaining the right temperature inside a warehouse or supplying hot air to a production process, IntegroWrap helps you stay in control of your heat requirements-while keeping energy costs down. Powerful. Reliable. Efficient Heating for Industrial & Commercial Use.

Technical Overview

IntegroWrap^TM Series Pest Heat Treatment Machines are advanced thermal disinfestation systems designed for industrial and commercial use, where controlled heat is employed as a non-toxic alternative to chemical fumigation. Designed & Developed by Integro Process Heating Solutions, these systems provide a precise, programmable, and sustainable method for eliminating pests at all life stages-eggs, larvae, pupae, and adults-using calibrated heat cycles. The system functions by elevating the temperature of the treatment zone or material to a target range of 50^oC to 60^oC (122^oF to 140^oF) and holding it for a pre-defined exposure period based on pest species and load profile. Heat penetrates all materials and voids, achieving uniform thermal lethality without damaging the substrate.

Environmentally Sustainable Solution

Zero Chemical Use: Entirely eliminates reliance on toxic pesticides, fumigants, and phosphine-based treatments
No Residues: Leaves behind no chemical traces, vapors, or pollutants-ideal for food-grade, pharmaceutical, and organic applications
Low Carbon Footprint Options: Systems available with electric heaters (renewable grid compatible) or high-efficiency diesel/LPG-fired blowers
Reusable & Recyclable: Chambers and enclosures made from durable, recyclable materials with modular, long-life components
ISPM-15 Compliant: Suitable for heat treatment of wooden packaging for international exports without methyl bromide

System Architecture & Components

High-Capacity Heating Module:

Electric (resistive tubular or finned heaters)
Diesel-fired indirect air heaters or LPG burners (with combustion-safe designs)
Optional Steam/Thermic Fluid coils for integration into plant utilities

Precision Control Panel:

Digital PID temperature controller with programmable ramp/soak profiles
Multiple RTDs or thermocouples with real-time monitoring
Data logging and audit trail features (optional USB or IoT interface)

Air Circulation System:

High-static pressure axial or centrifugal blowers for uniform heat distribution
Ducted air supply for chamber or tent systems
Adjustable louvers for directional airflow

Thermal Enclosure Options:

Rigid insulated chamber (PUF or Rockwool panels)
Portable, foldable insulated tent (for on-site or mobile use)
Containerized treatment units (20ft/40ft ISO format with plug-and-play integration)

Validated Applications

Application	Pest Types Targeted	Treatment Cycle (typical)
Wooden Pallets / Crates (ISPM-15)	Wood borers, beetles, termites	56C core temperature, 30 min hold time
Processed Food Storage Herbal & Pharmaceutical Warehousing	Beetles, moths, mites	5255C ambient, 24 hours
Mattress / Upholstery Treatment	Grain pests, fabric pests	5060C, adjustable cycle
Museum Archives / Textile Collections	Bed bugs, mites, lice	50C, 1.53 hours
	Silverfish, paper beetles	4855C, low gradient, soft ramp

System Advantages

Uniform Thermal Penetration Eliminates cold spots through calibrated airflow
Programmable Logic Allows automated control, repeatability, and compliance logging
Safe for Materials Non-destructive to paper, textiles, food-grade packaging, or wood
Modular Design Scalable from 1 m to 40-foot containerized systems
Compliance Ready Supports phytosanitary certifications and audit documentation

Why IntegroWrap?

Engineered in-house by Integro with full lifecycle support: design fabrication commissioning
Customized to your process: Available in batch, continuous, or mobile formats
Field-tested across diverse sectors: Agro-exporters, pharma warehouses, grain silos, and hospitality chains
Future-Ready: Integrates with solar, SCADA, and smart building ecosystems

Technical Consultation & Project Integration
Speak with our engineering team to design a custom thermal disinfestation solution for your application.
Whether you require a compact portable unit or a fully automated plant-integrated chamber, Integro
Process Heating Solutions delivers dependable, clean, and scalable results.

IntegroWrap^TM Heat Treatment Systems for Non-Chemical Pest Management
IntegroWrap^TMPest Heat Treatment Machines are advanced thermal disinfestation systems designed for industrial and commercial use, where controlled heat is employed as a non-toxic alternative to chemical fumigation. Designed & Developed by Integro Process Heating Solutions, these systems provide a precise, programmable, and sustainable method for eliminating pests at all life stages-eggs, larvae, pupae, and adults-using calibrated heat cycles.

Heat penetrates all materials and voids, achieving uniform thermal lethality without damaging the substrate.

Key Features:

Uniform Heat Distribution
The machine ensures even heating throughout the treated area or product, effectively eliminating pests without damaging the goods.

Precise Temperature Control
Equipped with advanced temperature sensors and controllers to maintain optimal heat levels suitable for different pest eradication requirements.

Energy Efficient Operation
Designed for low energy consumption while delivering high thermal output, reducing operational costs.

Safe and Eco-Friendly
Uses heat as a non-chemical pest control method, avoiding harmful pesticides and environmental contamination.

Versatile Application
Suitable for various commodities including grains, wood products, textiles, and food processing environments.

Compact and Portable Design
The IntegroWrap machines are easy to install and can be moved or wrapped around different items as required.

Rapid Heating Cycle
Capable of quickly raising temperature to the desired level, minimizing downtime.

Integrated Safety Features
Includes overheat protection, automatic shutdown, and insulated panels to protect operators.

Durable Construction
Built with robust materials to withstand industrial environments and frequent use.

User-Friendly Interface
Easy-to-use control panel with digital display for setting parameters and monitoring operation.

Why Integro?

Highly Effective Pest Control
IntegroWrap^TM machines use controlled heat treatment that eliminates pests at all life stageseggs, larvae, and adultswithout the use of chemicals, ensuring complete pest eradication.

Chemical-Free and Eco-Friendly
The heat treatment process avoids toxic pesticides, making it safe for humans, the environment, and sensitive products like food grains and textiles.

Uniform and Consistent Heating
Specially engineered to provide even heat distribution, reducing the risk of under-heated zones where pests could survive.

Energy Efficient & Cost-Effective
Designed with optimized heating elements and insulation to reduce power consumption and operational costs over time.

Versatile for Various Applications
Suitable for a wide range of industries-agriculture, food storage, wood products, textiles, and more.

User-Friendly Operation
Easy setup with intuitive controls and monitoring systems, allowing operators to manage treatment cycles with minimal training.

Quick Treatment Cycles
Rapid heating capabilities shorten treatment time, increasing throughput and reducing downtime.

Portable & Flexible Design
Compact and wrap-around configuration allows treatment of various-sized objects and spaces, enhancing flexibility in pest control operations.

Reliable and Durable
Built from industrial-grade materials ensuring long-term reliability and minimal maintenance.

Compliant with Global Standards
Meets safety and quality standards required for commercial pest treatment, helping clients maintain regulatory compliance.

The Pest Heat Treatment System is an efficient and eco-friendly solution designed for eliminating pests through thermal treatment. This advanced system operates on an electric power source and is compatible with voltages ranging from 220 to 440 volts, ensuring flexibility across diverse operational settings. Crafted with durable mild steel and finished in a striking blue color, the system offers robust performance and longevity. Its floor-standing installation design optimizes space utilization and stability, making it ideal for industrial and commercial environments. Built to deliver precise and controlled heating, this system eradicates pests safely without the use of harmful chemicals, thereby promoting environmental sustainability. Its reliable construction and easy setup provide seamless integration into pest control processes, ensuring reliable and effective operations.

Built Tough for Industrial Environments

Strong & Durable: Heavy-duty steel casing with anti-corrosion coating
Efficient Heating: Fast, energy-saving performance with minimal heat loss
Clean Air Output: Safe, dust-free, and suitable even for sensitive environments
Flexible Fuels: Works with Diesel, LDO, Furnace Oil, LPG, PNG, Biogas or go electric
Smart Airflow: High-speed blowers for uniform air distribution

Ideal for Both Process & Room Heating

The IntegroWrap Series is engineered for dual-purpose use:

Process Heating

Supplies hot air to support industrial operations
Used in drying, curing, baking, pre-heating, and thermal treatment
Excellent for textiles, food processing, paints & coatings, and packaging lines

Room / Space Heating

Maintains ambient temperatures in warehouses, manufacturing areas.
Creates safe, comfortable environments during cold seasons
Helps protect materials and machinery from low-temperature damage

Why Integro?

Dual-use versatility - Ideal for both process and environmental heating
Custom-built for your application - Designed to match your heat load, layout, and fuel availability
Energy-conscious - Delivers more heat with less energy
Safe, smart, and reliable - With expert support and service from Integro

FAQs of Pest Heat Treatment System:

Q: What type of power source does the Pest Heat Treatment System use?

A: The system operates using an electric power source.

Q: What is the voltage range required for the systems operation?

A: The system is compatible with voltages ranging from 220 to 440 volts.

Q: What material is used in the construction of the system?

A: The system is constructed using durable mild steel.

Q: What installation type is utilized for this product?

A: The Pest Heat Treatment System features a floor-standing installation type.

Q: What color is the Pest Heat Treatment System?

A: The system comes in a striking blue color.
